Printing | Resolution | 203dpi |
Printing method | Thermal | |
Printing speed | 4-8in/sec | |
Max printing width | 108mm (4.25' ) | |
Max printing length(label) | 250mm (9.84' ) | |
Interface | USB, Bluetooth | |
Printing head lifespan | 50km(Fixed length label), 150km(Continuous label) | |
Command | CPCL、TSPL | |
Label | Max roll OD | 200mm (7.87" ) (need extra holder) |

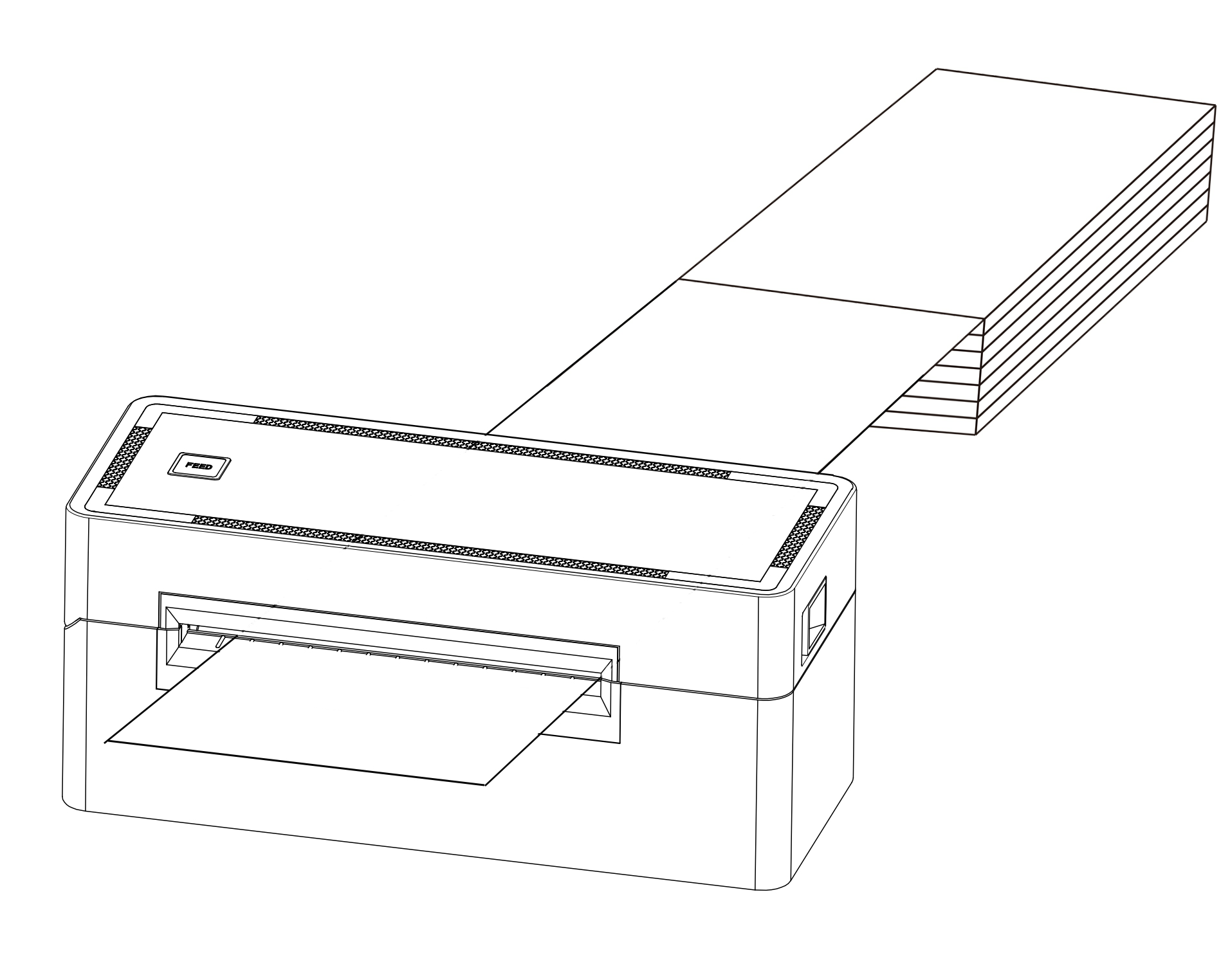

Label type | Continuous label, fixed length label, black marking label | |
Label width | 25mm-115mm | |
Label gap | 2mm~100mm | |
Label length | 30mm~300mm | |

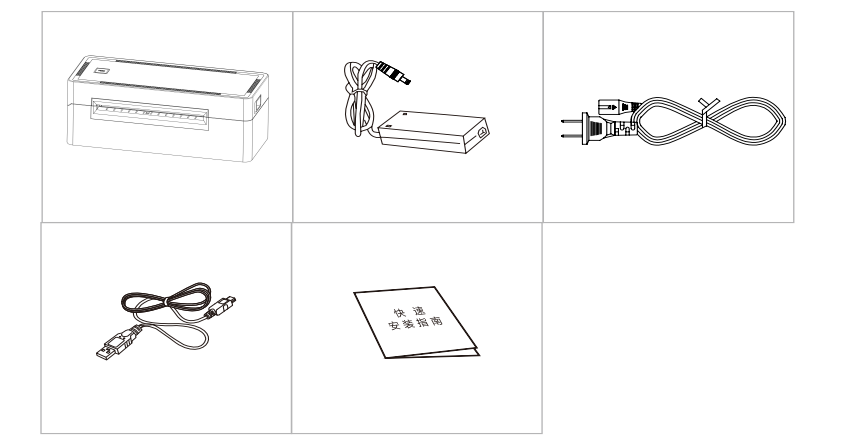

Accessories | Power adapter, power cord, USB cable, user manual, external label holder (optional) | |
Driver | Driver | XP/Win7/Win8/Windows 10/Linux/Mac OS |
Character | Font character | CP437 (default)/CP437/CP850/CP852/CP860/CP863/CP865/CP866/ WPC1250/WPC1251/WPC1252/WPC1253/WPC1254 etc. |
Printing font | ASCII Font A: 12*24 ASCII Font B: 9*17 Chinese: 24*24 | |
Barcode | 1D barcode | Code 39/39C/I25/Code 93/ITF25/EAN128/Code 128/ Codabar/EAN-8/EAN8+2/EAN8+5/EAN-13/EAN13+2/EAN13+5/ UPC-A/UPCA+2/UPCA+5/UPC-E/UPCE+2/UPCE+5 MSIC/ITF14/EAN14/CODE11/POST |
QR Code | QRCODE、PDF417(optional) | |
Graphic | Graphic | Support BMP/PCX |
Environment | Temperature | Working: 0-45°C, Storage: -10~60°C |
Humidity | Working : 20%~90% ; Storage: 10%~90% | |
Adaptor | DC24V/2.5A | |
RAM/Flash | 8MB/4MB | |
Size | 200*81*87mm | |
Weight | 882g |
